Telescopic Mobile Crane Liebherr LTM 1650-8.1
Maximum lifting capacity: 700 t
Maximum lifting torque: 2117 tm
1. Carrier Equipment
Carrier manufactured by Liebherr, with 8 axles, hydropneumatic suspension Niveaumatik with
automatic level control. Liebherr engine with a power output of 505 kW (688 hp), emissions
compliant with EU regulations (EU) 2016/1628, ECE-R.96 or EPA/CARB, with spark arrestors.
Fitted with an automatic transmission by torque converter and retarder. ECOdrive. Transfer box
with 2 speeds. 18x8 drive. Tires: 385/95 R 25 (14.00 R 25). 2-circuit power steering, rear axle
steering with two modes, manual or automatic. Braking system: 3 separate air circuits, two of
which are brake circuits equipped with anti-lock braking system (ABS). Retarder (Telma). Axle
maintenance reduced to changing the air springs. Independent oil-cooled disc brakes for the
cardan shafts. Independent air conditioning system with pre-programmable heater, air
conditioning. Optional: a radio/CD player with LCD display for cabin climate control and heating.
Hydraulic pinning of the crane on the rear of the crane&rsquo;s transport frame. Towing hitch on the
rear, front of the removable crane frame. Anti-collision alarm. Work lights on the crane frame.
Reception of the crane carrier.
2. Turret Equipment
Slewing ring with roller bearings. Centralized lubrication. The mechanical drive of the rotating
part is ensured by the diesel engine of the carrier chassis. ECOmode. Hydraulic system with
variable displacement pumps. Emergency hydraulic pump control. Oil circuit shut-off with
electrical command for slewing movement, lifting of the main boom, and telescoping in an open
hydraulic circuit. Preparation for lift mechanism type 2 and lift type 3. Slewing mechanism. Oil
cooler with fan. Two work lights adjustable on the base section of the boom and lights on the
turret (lateral and rear). Operator's cab (tiltable up to 20&deg;) equipped with a separate heating unit,
air conditioning, one seat with ventilation and heating, programmable standard radio, and seatmounted
joystick controls. Boom section calibration by computer and tilt sensor. Boom load
monitoring by camera and color display. VarioBallast with 155 t. Load monitoring system (LMB),
load moment indicator, and indication of reactions on all outriggers in automatic mode. System
test. Anemometer. Flashing beacon for aerial signaling. Job site area limitation. Turret reception.
Paint: Chassis carrier with gray basalt rims: RAL 7012, gray basalt
Operator's cab, rotating turret, tip of the boom, and counterweight: RAL 1007, yellow daffodil
3. Base Machine:
&bull; 1000: Base machine without telescopic boom
&bull; 1120: Telescopic boom 16.7 m - 54 m and 17.4 m - 80 m, with 2 transport carriages
(outline for transport)
4. Work Equipment:
&bull; 1200: Telescopic boom guying Y-system
&bull; 1300: Hydraulic telescopic boom extension from 4 m (VE) for increased load lifting
capacity on the telescopic boom (only in connection with equipment position 1200)
&bull; 1400: Telescopic boom extension (VE) from 8 m (only in connection with equipment
positions 1100 or 1120)
&bull; 2100: Bridle with single sheave, additional pulley
&bull; 2200: 91 m variable luffing lattice jib
&bull; 3200: Piece for mounting variable luffing lattice jib
&bull; 4100: Jib (HJ) 4.9 t, 2 auxiliary sheaves
&bull; 4500: Heavy-duty winch (hoist winch 3)
&bull; 4600: 2.5 t auxiliary sheave, double pulley with several options from 3.2 t/4.2 t
&bull; 4700: Auxiliary sheave, 8.9 t, double pulley with several options from 2.1 t/3.5 t
&bull; 4800: Auxiliary sheave, 9.4 t, triple pulley with several options from 2 t/3 t
&bull; 5000: Auxiliary sheave 37.5 t, single pulley with several options from 1.1 t/1.75 t
&bull; 5050: 12.7 t hook
5. Additional Carrier Equipment:
&bull; 5012: Engine shut-off valve with intake shut-off, including protection against surge, with
emergency stop button at the base of the boom and turret cabin position
&bull; 5100: Emergency button "punch" in operator's cab and turret cabin
&bull; 5150: 8.25 R 25 (16.00 R 25) Michelin tires
&bull; 5160: Spare wheel 445/95 R 25 (16.00 R 25, Michelin, without support)
&bull; 5540: Additional rear outrigger cylinder for autonomous mounting of the counterweight
box
&bull; 5588: 4 metal distribution plates, 3.5m x 2.4m
&bull; 6111: Long-range headlights
&bull; 6131: Fourth beacon light
&bull; 6335: 12 V power outlet in the driver's cabin
&bull; 6511: Underrun protection bar
6. Additional turret equipment:
&bull; 7051: Additional hydraulic oil cooler
&bull; 7320: Additional counterweight of 20 t (for a total of 175 t)
&bull; 7335: 8 plates of 5 t each instead of 4 x 10 t for better weight distribution during
transport
&bull; 8101: Work light at the top of the boom
&bull; 8310: Camera and color screen system for boom head and additional equipment
(if ordered)
&bull; 8335: 12 V power outlet in the turret cabin
&bull; 8401: Use of the carrier hydraulic circuit for emergency turret control
Colors:
&bull; 9010: Special two-color paint
&bull; 9060: Custom inscriptions

Cranes

All Terrain Cranes

Backhoe Loader Attachments

Shovel

Used Cranes

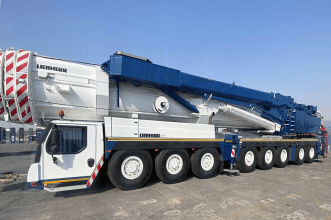

General Specifications:
Year: 2018
Manufacturer: Liebherr
Model: LTM 1500-8.1
Tonnage: 500t | 550 US
Boom Length: 84m | 275&rsquo;
Jib: 91m Luffing | 300&rsquo; Luffing
Winch Count: 3
Hook/Block: Ball &amp; Block
Counterweight: 165t | 363,762 lbs.
Hours Upper: 5,570
Chassis
Engine: D9508.A7
Transmission: ZF-transmission
Hours Lower: TBD
KM/Miles: 14,573 km | 9,055 miles
Tire Size: 445/95/R25
Drive Standard: 16 x 8 x 12
Add Options: TBD
